Project overview
Launched in June 2013, the Reducing the Costs of Marine Renewables via Advanced Structural Materials, is a three year, £1.2M grant funded by EPSRC , SUPERGEN Marine Grand Challenge, split between the Universities of Southampton, Strathclyde (lead) and Newcastle. (Grant EP/K013319/1)
Summary
For marine renewable energy conversion to achieve a much needed step change in cost reduction, whilst proving to be cost effective and a reliable source for electricity supply, a number of major engineering challenges need to be addressed. The biggest challenge relates to the scaling up of the power capture interface (device level) and new approaches to the station keeping system (physical environment) which in turn is governed by the characteristics of the resource.

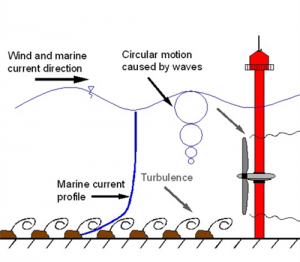

Tidal turbine inlet, showing waves, velocity profile and turbulent eddies
In order to achieve technology cost reduction, it is envisaged that the development of marine renewable will emulate the development practices adopted in the early days of the wind energy industry and embark on building and deploying larger diameter rotors to increase device capacity and through this deliver lower unit costs.
The challenge however relates to managing the resulting consequences on structural loadings. These increase with the square of the diameter of rotors/ power capture interface. As such, this approach will result in the materials used in the power capture interface operating under very high loading conditions.
Evidence to date indicates that all large horizontal axis rotor systems greater than 15m diameter, which have been deployed in full scale tidal environments, have succumbed to catastrophic rotor blade failure. Hence, there is a serious materials challenge in developing more robust materials for the operating environment.
By combining expertise in tidal energy and materials science, this project aims to tackle this issue, through a combination of laboratory testing and modelling.
Scientific objectives
- Establish the dynamics of the tidal flow and quantify these in the context of their individual components contributing to the bulk flow.
- Enable design flow conditions to be quantified for the ultimate and fatigue limit states for which different sizes of tidal rotors have to operate and survive.
- Capture this new knowledge/ information within advanced integrated computational modelling tools used to assess the performance of tidal energy converters.
- Use this information to inform the development of advanced materials to be used in larger diameter and capacity rotors and associated drive train and power take off systems.
- Develop materials operating envelopes based on the conditions modelled
Project partners
University of Strathclyde:
- Prof Margaret Stack,
- Mr Cameron Johnstone
University of Southampton:
- Prof. AbuBakr Bahaj,
- Dr Luke Myers,
- Prof. Robert Wood,
- Dr Julian Wharton,
- Dr William Batten
Newcastle University:
- Prof. Stephen Bull,
- Dr Edward Charles,
- Dr Julie Race
