Figure 5.1 shows an array of nanodots created using the
novel ``double template'' method imaged using a scanning electron
microscope.
Figure 5.2 shows the experimentally measured
hysteresis loop for such an array of nickel nanodots (see
section 5.1.1) with a bounding sphere diameter
of 500nm (Zhukov, 2004) obtained through magneto-optical Kerr
effect (Argyres, 1955) microscopy. The motivation here is to reveal
the physics in this hysteresis loop through micromagnetic simulation.
Although the precise shape of the nanodot is not known, we do know the
manufacturing method (see section 5.1.3) and from this we can
derive an approximate representation of the nanodot.
It is not feasible to perform a three-dimensional micromagnetic
simulation of a large array of nanodots so instead a single nanodot is
modelled numerically. Despite some inevitable dipolar interaction in
the real system, particularly when the nanodots are close together, it
remains of interest to investigate the magnetisation of an independent
nanodot.

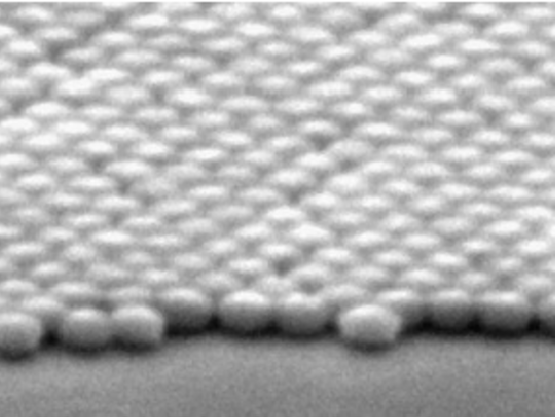

Figure 5.1:
Scanning electron microscope image of a droplet array
|

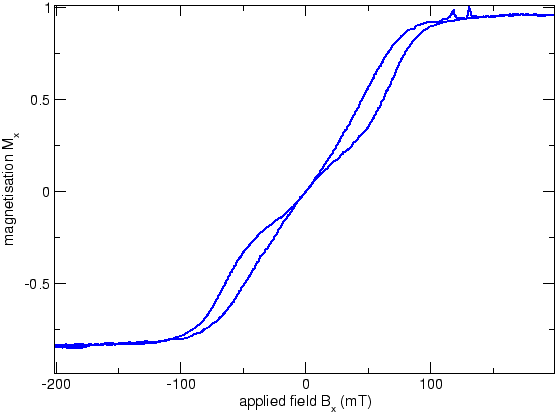

Figure 5.2:
Normalised MOKE measurements for a nickel dot array of diameter 500nm
|

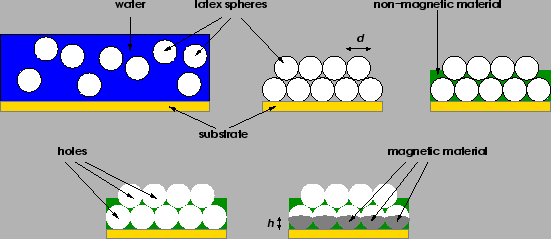

Figure 5.3:
The double-template self-assembly technique. First, an aqueous suspension of latex spheres (top left) of diameter is poured onto a substrate. As the water evaporates, the latex spheres are attracted to each other (top centre), forming a regular close-packed structure. This template can be filled with a non-magnetic material (top right) and the latex spheres etched away (bottom left). The resulting gaps can be filled with a magnetic material to a varying height (bottom right) to form arrays of connected or disconnected part-spherical nanodots.
|
