Multiscale Pyramid Structure
[Back to the Index]
The module allows retrieval of similar images based on the general texture distribution of the image and sub-images.
The module is good for retrieval of images based on a known query image if the retrieved images are required to contain an area with a similar texture to the query image. This means it is also suitable for retrieval of images based on a query image which is only part of a complete image.
This module divides database images into a heirarchy of small patches and the PWT is calculated for each patch. The query is compared with all patches so that sub-images may be located in the parent image.
| Module Speed | Slow |
| Module Accuracy | Medium |
The texture detail finder finds sub-images by dividing the query and the database image into a number of tiles over a number of resolutions calculating the PWT for each of the tiles.
Multiscale Pyramid Structure |
The highest resolution image is converted into 64x64 tiles, overlapping by 32 pixels in each dimension. The image resolution is halved and, again, divided into 64x64 tiles (of which there will be 4 times less). The lowest resolution is of 64x64 pixels and 1 single tile.
For each tile a PWT is created and stored, so that the final feature vector is a set of PWT feature vectors, one for each tile.
Both the query image and the database image are converted into a pyramid structure, and then each of the tiles in the query image are compared against each of the features for the tiles in the database image using the PWT matching algorithm, as described on the PWT Help Page.
The query is converted to a pyramid to facilitate the database image being a subimage of the query image (double sub-image detection). An alternative is to assume the query is a subimage of the database image only, and perform a PWT match of the whole query image against each of the tiles in the database image.

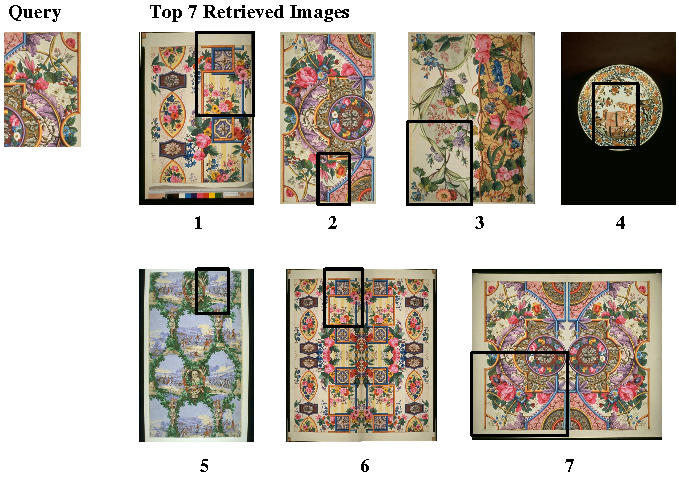

The following is an example query giving what would be considered good results.
Note: The matching is based only upon the general texture layout of the images and subimages.
Because the MPWT is a multi-scale version of the PWT, you can expect all the same types of properties and shortcomings. Used on its own you should definitely not expect the MPWT algorithm to be able to find specific instances of objects (e.g. chairs, pots, etc). However, when used with a metadata search to locate similar objects, this algorithm could locate those with a similar texture.
